CNC Milling Services
Size Capability: 40" x 20" x 25"
Tolerance: +/- 0.0005"

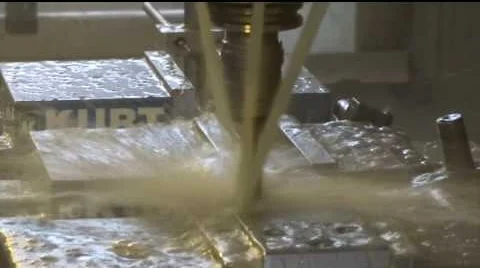

Featuring the latest CNC milling technology, ARZ Machining’s facility house offers state-of-the art options for manufacturing high precision components. We’re equipped to produce low to high volume production as well as prototype machining. All of our operations are centered around our commitment to lean manufacturing and superior quality. Our milling processes include: Milling, Drilling, Boring, Tapping, Thread Milling, Internal Forming, Knurling, Broaching, Counterboring, Profiling, Reaming, Spline, Parting/Cutting, Facing, Countersinking, Pocketing, and other specialty machining processes.
We machine tolerances to 0.0005” and our CNC milling equipment has the capabilities to mill parts up to 40” in length x 20” in width x 25” in height with a maximum part weight of 500lbs. Our mills also offer up to 4 axis of machining capabilities.
We have the ability to work with the following material in our milling operations: Alloy Steel, Stainless Steel, Aluminum, Brass, Bronze, Copper, Titanium, Delrin, Acetal, HDPE, Nylon, PVC, PEEK, Acrylic, ABS, and many others.
Since 1991, we’ve saved our customers money and time by increasing efficiency and quality with our new equipment. We’ve produced superior products for industries including Aerospace, Agricultural, Architectural, Automotive, Chemical, Defense, Dental, Electronic, Food, Machine Tool, Marine, Medical, Military, Molding Companies, Gas Companies, Oil Field, Packaging/Conv. Along with milling we also offer a range of secondary services so that ARZ Machining can be a one-stop shop for all of your CNC machining needs. For more information on our CNC milling services, please contact us or refer to the table below.
+ CNC Milling Capabilities
Milling Processes | Milling Drilling Boring Tapping Thread Milling Internal Forming Knurling Broaching |
Counterboring Profiling Reaming Spline Parting/Cutting Facing Countersinking Pocketing |
Equipment | CNC Vertical Machining Manual Machining |
|
Equipment Capabilities | CNC Control 4th Axis |
|
Machinery Axis | 3 axis, 4 axis | |
Maximum Milling Part Length | 40” | |
Maximum Milling Part Width | 20" | |
Maximum Milling Part Height | 25" | |
Maximum Part Weight | 500 lbs | |
Tightest Tolerance +/- | 0.0001” | |
Materials | Metals Alloy Steel Stainless Steel Aluminum Brass Bronze Copper Titanium |
Plastics Delrin/Acetal HDPE Nylon PVC PEEK Acrylic ABS and many others |
Production Volume | Prototype, Low Volume, High Volume | |
Lead Times Available | Quoted on job by job basis Emergency services available Rush Services Available |
|
Intended Application | Machine components Engine components Hydraulic components Firearm components |
Precision components Micro components Construction equipment Automotive accessories |
Efficiency | Lean Manufacturing |
+ Additional Information
Industries Served | Aerospace Agricultural Architectural Automotive Chemical Defense Dental Electronic Food |
MachineTool Marine Medical Military Molding Companies Gas Companies Oil Field Packaging/Converting Pharmaceutical |
Secondary Services Offered | Anodizing Assembly Bending Broaching Casting Centerless Grinding Counter Sinking Deep Hole Drilling Delivery Design 3D Printing Drilling Etch and Chromating |
Finishing Heat Treating Inspection Passivating Plating Pressing Reaming Special Packaging Tapping Threading Welding Part Tumbling/Deburring Sandblasting |
File Formats Accepted | Bit Mapped Graphics (BMP) Drawing Interchange Format, or Drawing Exchange Format (DXF) Graphics Interchange Format (GIF) Initial Graphics Exchange Specification, ANSI file format (IGES) Inventor (IDW, IPT) Joint Photographic Experts Group (JPG or JEPG) MasterCam (MDX, MC8, MC9, SET) Standard format for exchanging data between CAD and CAM programs (PDES) Portable Document Format (PDF) 3D ACIS Model File (SAT) SolidEdge (DFT) Standard for the Exchange of Product Model Data (STEP) Tagged Image File Format (TIFF) AlphaCAM (AMD, ATD) AutoCAD (DWG, DWZ) IronCAD (ICD, ICS) Pro-E or Pro/Engineer (DRW, PRT, XPR) SolidWorks (SLDPRT, SLDDRW, SLDDRT) |
